H2(3x) 3:1 Self-extinguishing Polyolefin heat shrink tubing - 1,5mm / 0,5mm

Article number: W05001500A
€0,00
Excl. tax

Flame-retardant heat shrink tubing that complies with UL 224 (E204071). Delivered with 1.5 mm diameter and can shrink back to 0.5 mm.

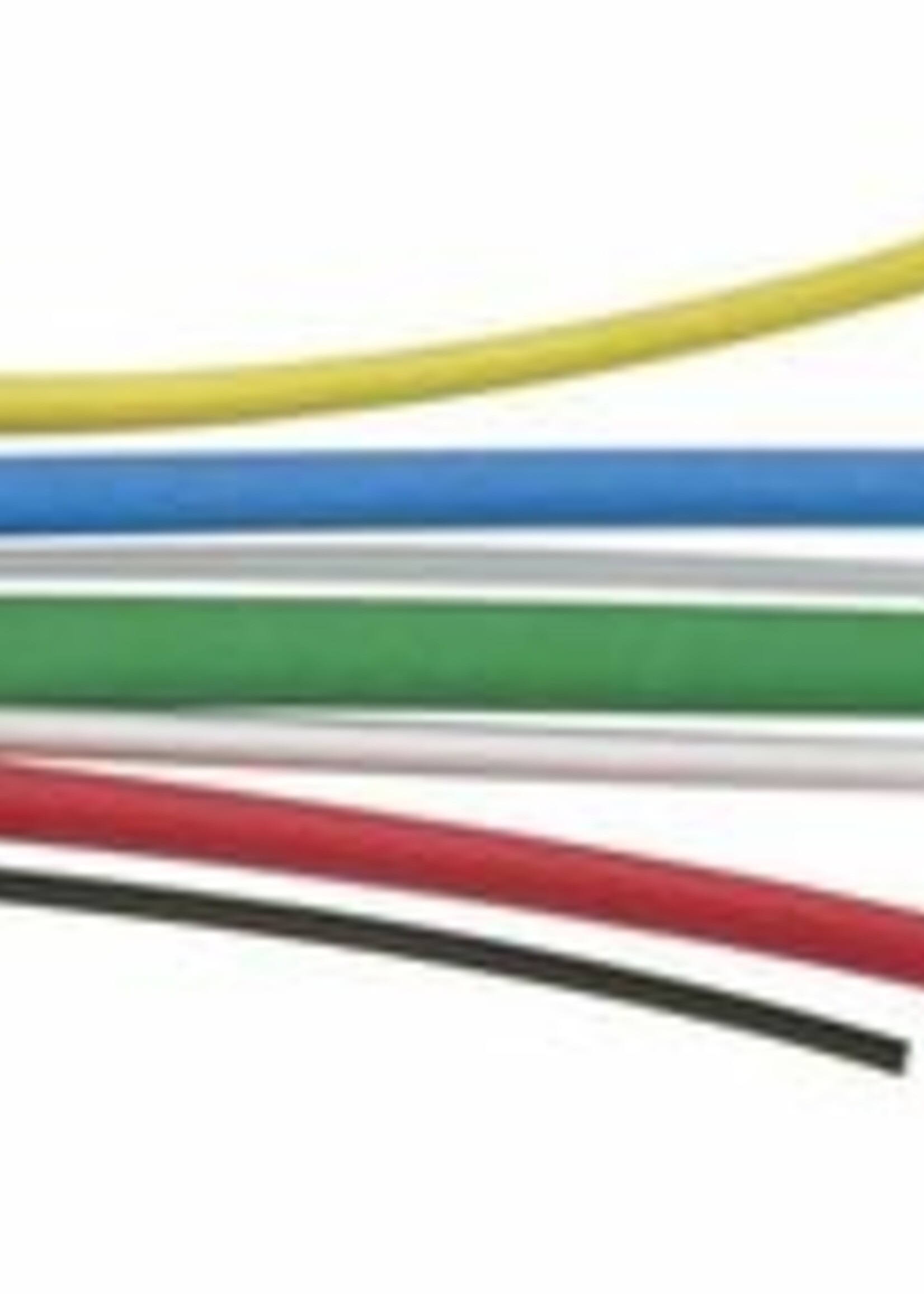

Available in many colors, so perfect for color coding and repair of connectors like USB-C.

The rating of this product is 0 out of 5

(0)
On backorder (Delivery timeframe:4 days up to 2 weeks)

Compliant with UL224

Operating temperature from -55°C to +125°C.

Available in:

  • Max. 7 colors
  • Sizes from 1,5mm up to 39mm

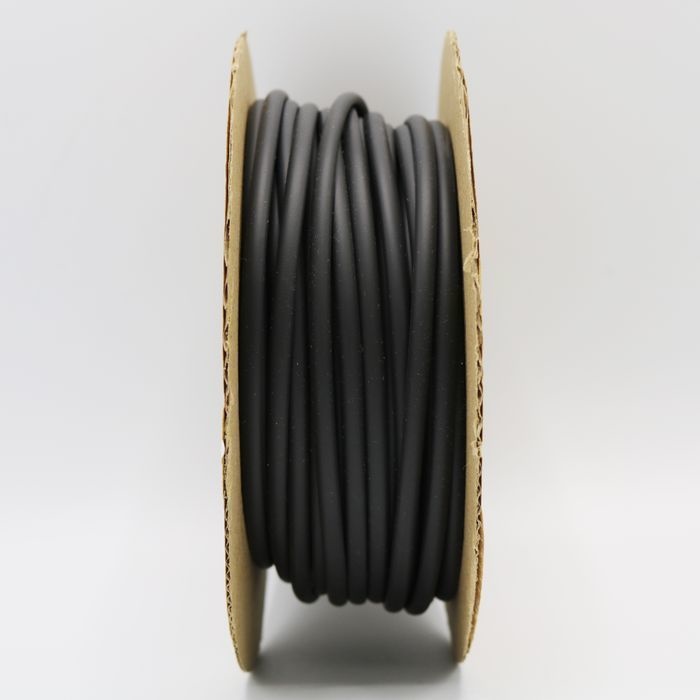

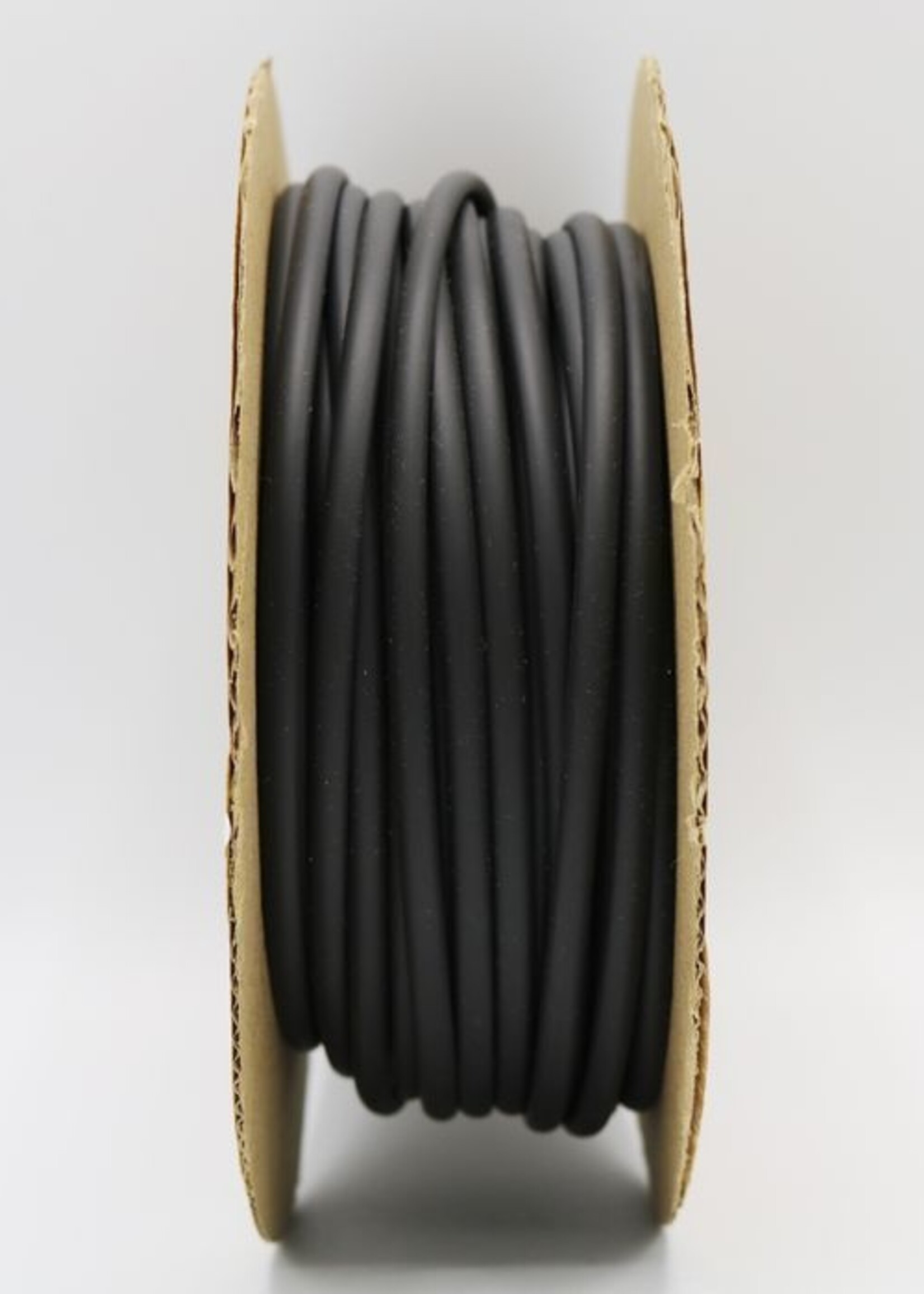

The heat shrink tubing is supplied on reels and STDB miniboxes (up to 24mm). It is also possible to have the heat-shrink tubing cut to the desired length or to adjust the packaging unit.

Applications

3:1 self-extinguishing heat shrink tubing is the choice where the bigger shrink ratio is a must have. This type is often used for the following purposes:

  • Insulation of connectors
  • Color coding
  • Mechanical protection
  • Bundling cables

Repairing cable covers

Chemical resistance Good
Type Thin Walled Heat Shrink tubing without adhesive
Dielectric strength 25kV/mm
Shrink temp. > 120° C
Operating Temperature -55° tot + 125° C
Standards UL 224, RoHS, MIL-I-23053/5 class 3, CSA
Material Polyolefin
Halogen Free? No
SELF EXTINGUISHING? Yes, but not Transparent
Shrink Ratio 3:1
