H2(Z) 2:1 Self-extinguishing Polyolefin heat shrink tubing - 152,0mm / 76,2mm

Article number: W02152010

€0,00

Excl. tax

Flame-retardant heat shrink tubing that complies with UL 224 and VW1 (E204071). Delivered with 1523mm diameter and can shrink back to 76,2mm.
Available in all colors, so perfect for color coding and electrical jobs around the house or machines.

(0)

On backorder (Delivery timeframe:4 days up to 2 weeks)

Compliant with UL224

Operating temperature from -55°C to +125°C.

Available in:

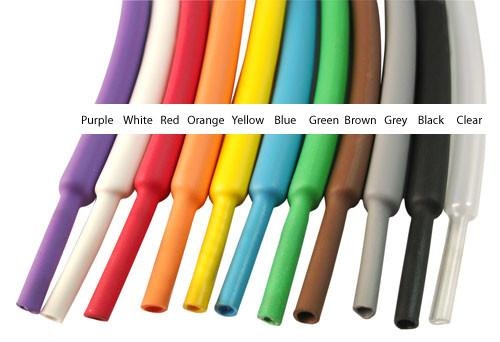

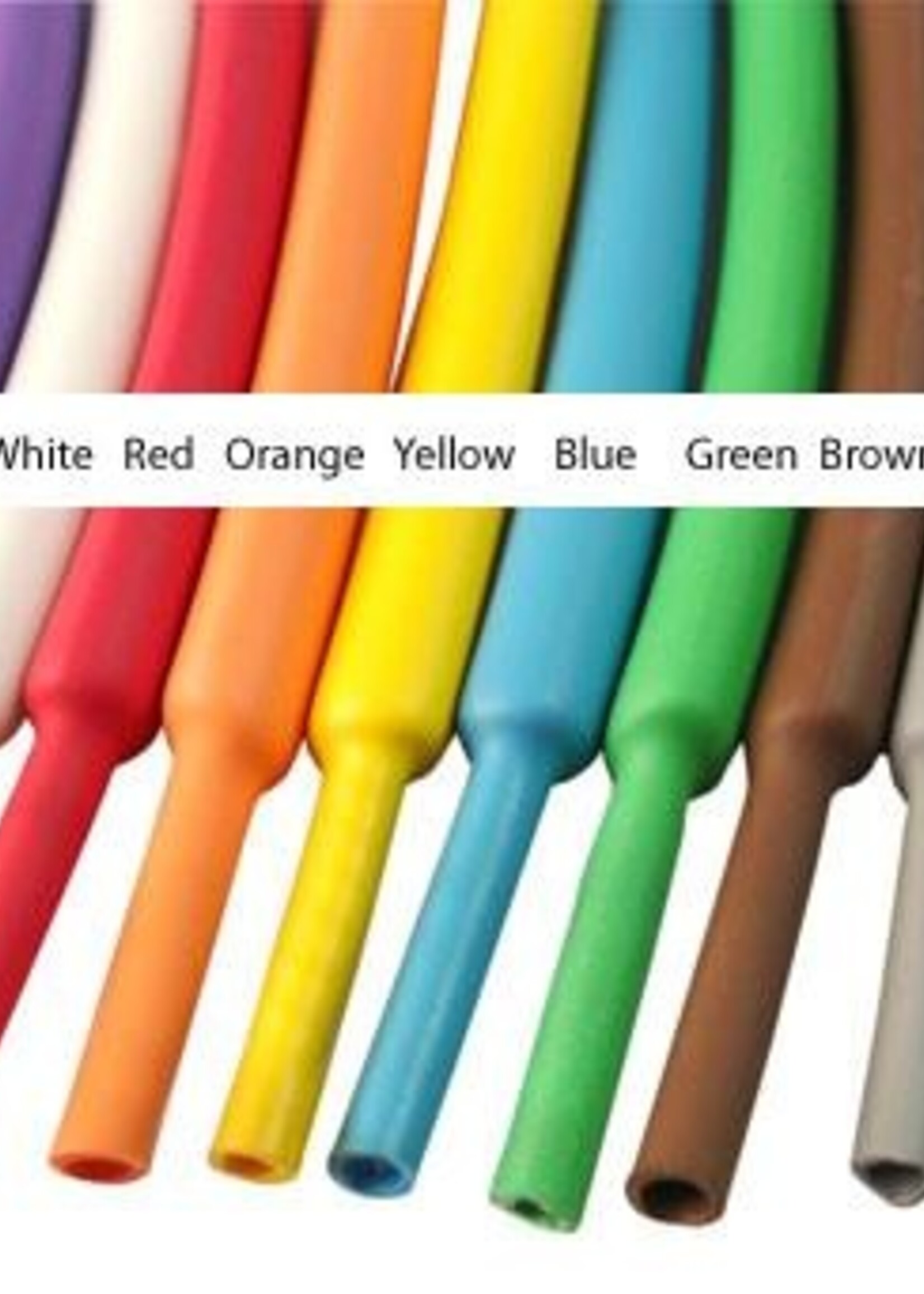

11 colors
17 sizes

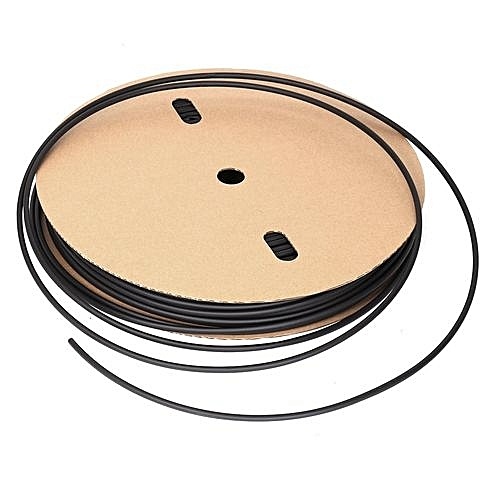

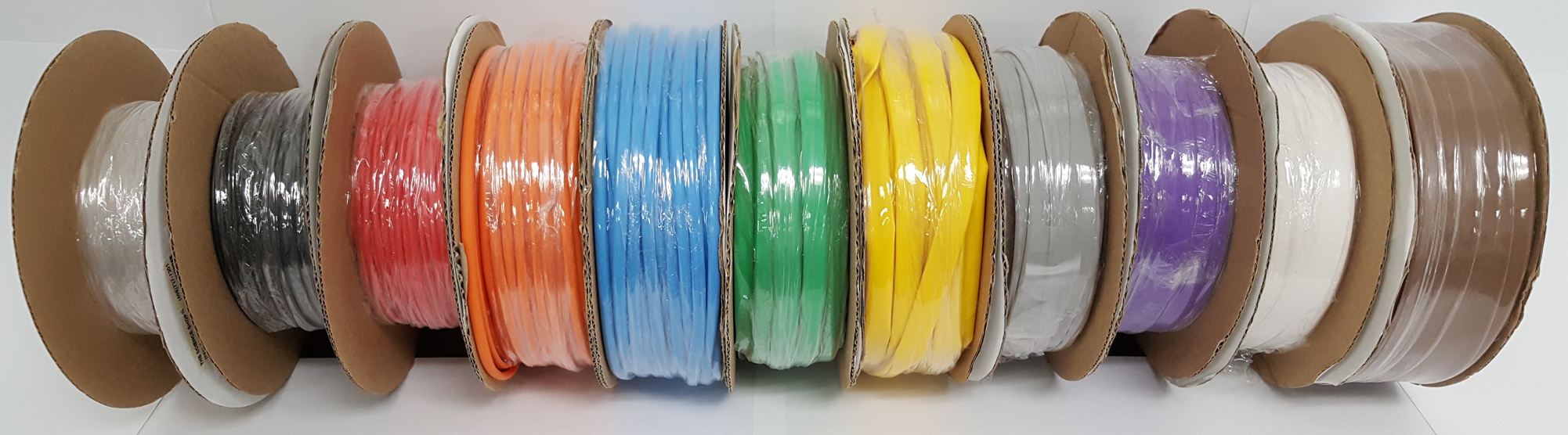

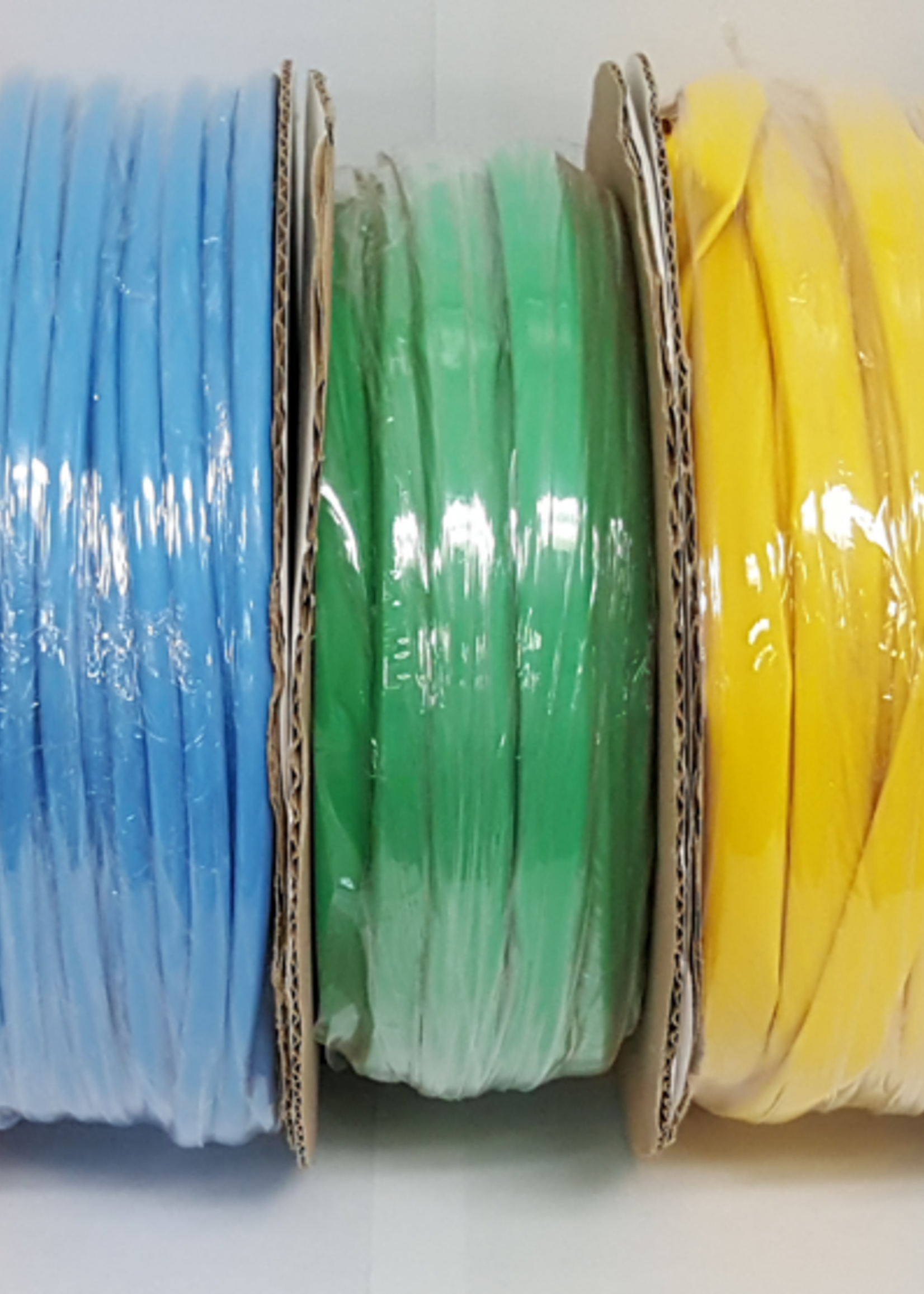

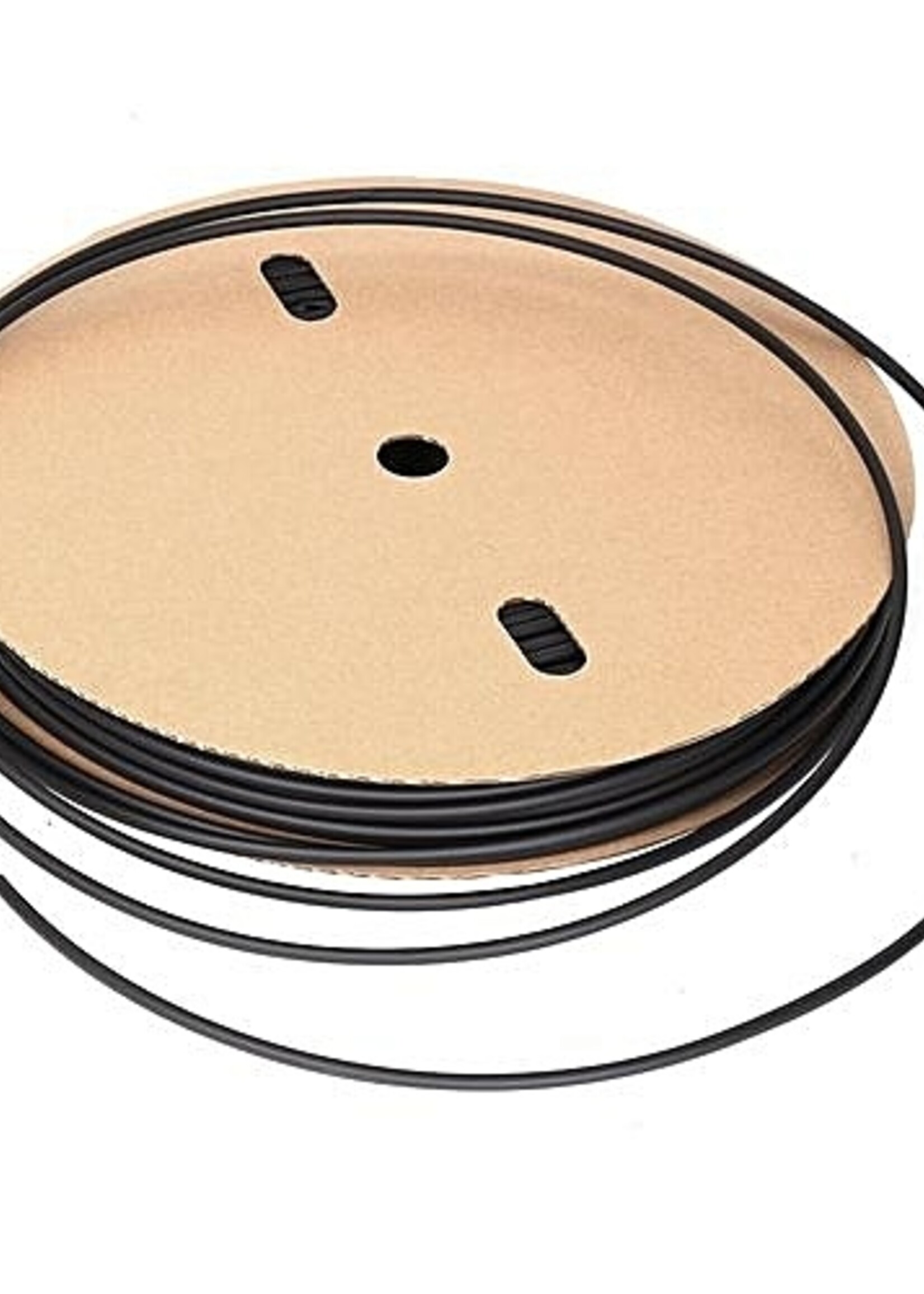

Both shrinkage ratios are supplied on reels, 4ft lengths and STDB miniboxes. It is also possible to have the heat-shrink tubing cut to the desired length or to adjust the packaging unit.

Applications

Commercial heat shrink tuning is the price sensitive choice. This type is often used for the following purposes:

Insulation
Color coding
Mechanical protection
Bundling cables

Repairing cable covers

Material	Polyolefin
Shrink Ratio	2:1
Standards	UL 224, RoHS, MIL-I-23053/5 class 3, CSA
Operating Temperature	-55° tot + 125° C
Shrink temp.	> 120° C
Dielectric strength	25kV/mm
Chemical resistance	Good
Type	Thin Walled Heat Shrink tubing without adhesive
SELF EXTINGUISHING?	Yes, but not Transparent
Halogen Free?	No
