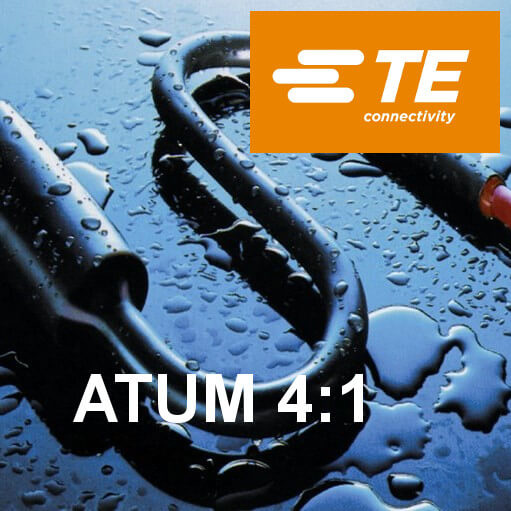

TE ConnectivityATUM 52/13 Adhesive Lined Heat Shrink Tubing

Description ATUM

ATUM is a 4:1 shrink ratio, general purpose, flexible, polyolefin tubing with a thermoplastic adhesive inner liner. The inner liner will melt and flow to environmentally seal and protect components and interconnections.

The Raychem brand of heat shrinkable sleeving (now owned by TE Connectivity) is world renowned as the market-leading product. ATUM 4:1 is supplied with the optimum amount of adhesive to ensure that the product fully seals. After a successful installation one should see some excess adhesive wicking from the tube.  This is a telltale sign that the product has a complete seal. There are many cheaper and inferior products available, but none of these has the same amount of adhesive or performs to the same level.

Undoubtedly, this product is ‘The King’ of the adhesive lined heat shrink products.

Features & Benefits

• 4:1 shrink ratio allows for connector-to-cable sealing.
• Operating Temperature: -55ºC to 110ºC
• Dielectric Strength:  12KV/mm
• Adhesive bonds to a wide variety of plastics, rubbers, and metals (including polyethylene, aluminium, steel and copper.)

Applications

• Environmentally seals and protects a wide variety of electrical applications.
• High expansion ratio for cable jacket repair without removing connectors.
• Mechanical protection

Available Sizes and dimensions
